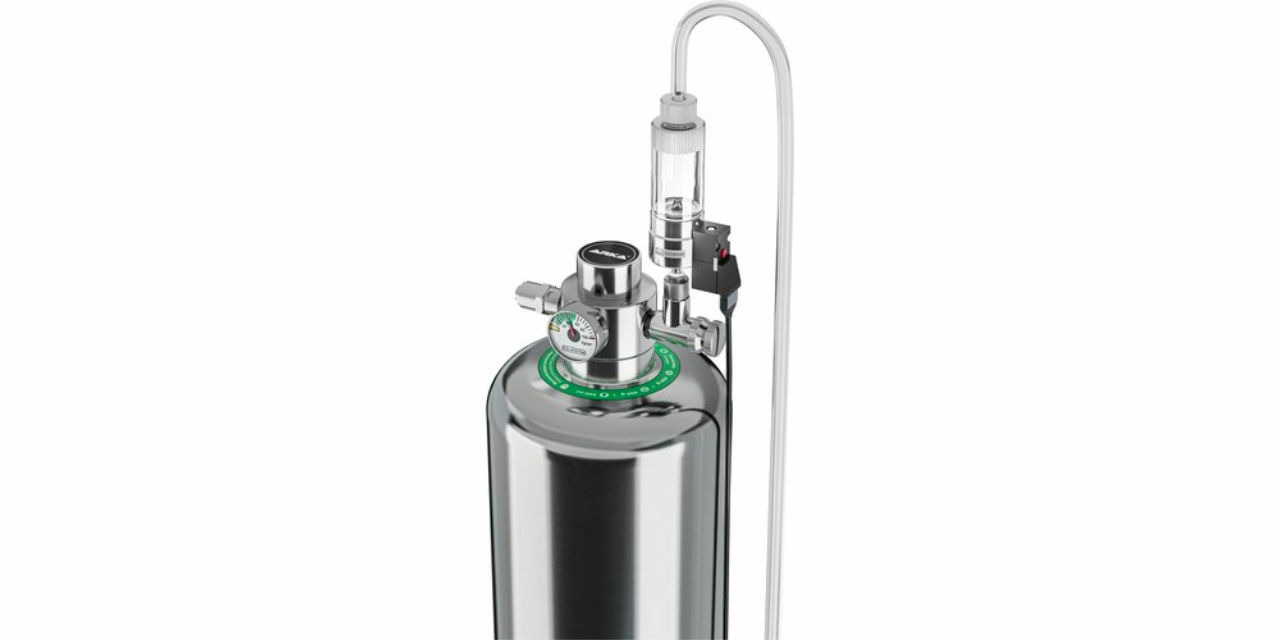

ARKA mySCAPE-CO2 System

ARKA mySCAPE-CO2 System for Freshwater Aquariums

Are you ready to upgrade your aquarium? The ARKA mySCAPE-CO2 system is the ultimate solution for giving your aquatic plants exactly what they need—the perfect level of carbon dioxide. As experienced aquarium experts, we at Petonus are here to provide you with all the essential information about this innovative system. We offer not only detailed insights but also practical tips on installation, use, cleaning, and maintenance. Let us guide you on your journey toward an even more vibrant and healthy underwater ecosystem.

CO2: The Elixir of Life for Every Aquarium

If you want a colorful, vibrant aquarium, CO2—or carbon dioxide—is your best friend. It’s like the elixir of life for your underwater world. Why is CO2 so important for your aquarium? The answer lies in the foundation of aquatic life—photosynthesis. Your aquatic plants need carbon dioxide to thrive, because CO2 is their primary food source. Without sufficient carbon dioxide, they cannot photosynthesize effectively—and that means they won’t produce enough oxygen, which in turn is vital for your fish and other aquarium inhabitants. A well-balanced CO2 level in the water therefore not only promotes plant growth but also helps keep your aquarium in a healthy balance.

An optimal CO2 supply is the key to a lush, vibrant aquarium. It allows your plants to grow stronger and more colorful—which in turn creates a natural and attractive environment for your fish and other inhabitants. It also helps control algae growth, since healthy plants consume nutrients that algae would otherwise use to grow.

Effective Algae Control in the Aquarium

And this is exactly where the CO2 system comes into play, becoming a life-giving element for your aquarium: Every bubble of carbon dioxide rising through the water is a breath of life. Your plants flourish, providing shelter and food for your fish and creating a vibrant, pulsating ecosystem. This harmonious balance, achieved through a finely tuned CO2 system, transforms your aquarium into a dynamic masterpiece where every living creature plays its own significant role. With a CO2 system, you’re not only infusing your aquarium with the essence of life, but also with that special sparkle that makes it shine.

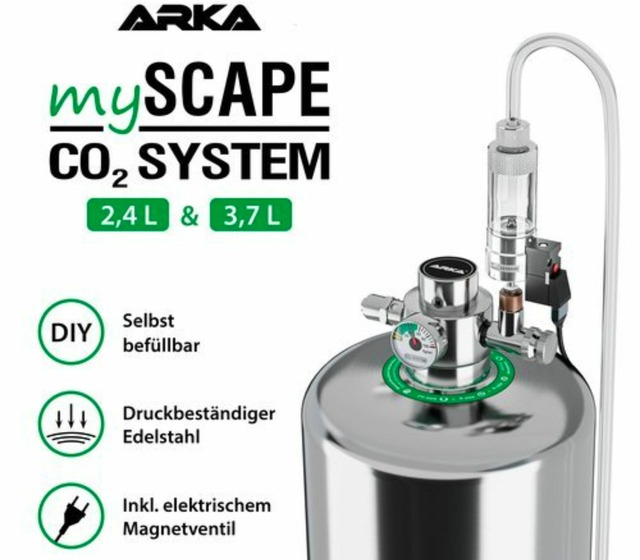

The revolutionary ARKA mySCAPE CO2 system for freshwater

ARKA stands for an approach that enables aquarists to pursue their hobby with less effort and more enjoyment. The company channels all its expertise and motivation into developing products that are both functional and user-friendly. The ARKA mySCAPE-CO2 system embodies this commitment by offering an efficient, reliable, and easy-to-manage solution for CO2 supply in freshwater aquariums.

With the ARKA mySCAPE-CO2 System, you get a product that not only promotes the health and growth of your aquarium plants but also enhances the enjoyment of your aquarium hobby. This system is the result of many years of research and development—during which ARKA has consistently focused on creating technologies that are both environmentally friendly and cost-effective. It reflects ARKA’s philosophy of offering sustainable solutions that respect the balance of aquatic life while minimizing the daily maintenance required.

The user-friendliness of the ARKA mySCAPE-CO2 system makes it an ideal choice for both experienced aquarists and beginners. It:

• integrates seamlessly into any freshwater aquarium,
• improves water quality, and
• supports healthy flora and fauna.

With this system, ARKA demonstrates once again that it is possible to combine advanced aquatics with simplicity and efficiency.

What Makes ARKA’s mySCAPE-CO2 System So Special

In the fascinating world of aquariums, ARKA’s mySCAPE-CO2 system represents a true innovation that outshines conventional supply systems. It breaks away from the conventional approach of typical CO2 systems using disposable or reusable gas cylinders, as well as fermentation-based BIO-CO2 systems. Instead, the carbon dioxide is produced here through a sophisticated chemical reaction, making the system a pioneer in technology and sustainability.

What makes the mySCAPE system so extraordinary is its straightforward, DIY-friendly operation: You are the master of your own underwater universe and can refill the system yourself as often as you like. This independence is a blessing for busy aquarists or for those who don’t have an easily accessible CO2 refill station nearby. In addition, the components needed for CO2 production are also available in convenient refill packs.

20% Discount

Arka

Arka MyScape CO2 Refiller - 600 g

7.95 €

(13.25 € / kg)

EIA 9.90 €

14% Discount

Arka

Arka MyScape CO2 Refiller - 400 g

5.95 €

(14.88 € / kg)

EIA 6.90 €

Another highlight of the mySCAPE system is its exceptional controllability. While traditional BIO-CO2 systems often have an inconsistent CO2 supply, ARKA’s mySCAPE offers precise control via the needle valve. This ability to deliver the exact amount of CO2 is the secret behind a thriving aquarium filled with healthy plants and lively fish.

Key Features of the ARKA mySCAPE CO2 System

• Complete set including all essential components
• Chemical reaction for CO2 production
• Adjustable CO2 flow
• Aesthetic design
• High-quality materials and safety features
• User-friendly operation
• Self-contained and refillable system
• Nighttime Shut-Off via Solenoid Valve

Visually, the mySCAPE system is a true design statement. Its elegant stainless steel finish makes it an attractive focal point next to any aquascaping tank. It lends the entire setup a modern, stylish touch and can even be further customized: You can also add stainless steel filters, inlets, and outlets to create a truly striking look. The name “mySCAPE” truly lives up to its name here: The system is not only a functional element but also an integral part of your aquarium’s overall aesthetic concept. It pays homage to the art of aquascaping and demonstrates that technology and design can go hand in hand—to improve the quality of life for your aquatic inhabitants and enrich the visual experience for the viewer.

In terms of price, the mySCAPE system offers an attractive and affordable alternative to conventional reusable systems, without compromising on quality or performance. The mySCAPE system also sets new standards in terms of ease of use and technical sophistication:

• The precise adjustment options allow for exact tailoring to your aquarium’s CO2 requirements.
• The integrated safety valve and the pressure-reinforced cylinder walls protect the system from potential damage caused by excessive pressure resulting from the chemical reaction inside.
• The electric solenoid valve enables a nighttime shut-off, meaning the CO2 supply is automatically interrupted during the night when the plants are not photosynthesizing. This intelligent feature not only saves CO2 but also contributes significantly to maintaining the biological balance in the aquarium.

How Your Freshwater Aquarium Benefits from the CO2 System

The world of freshwater aquariums is colorful, vibrant, and fascinating. In this microcosm that you lovingly cultivate in your home, ARKA’s mySCAPE CO2 system plays a key role: Imagine how your aquarium comes to life with the mySCAPE-CO2 system. The plants in your aquarium, which may have shown only modest growth until now, begin to thrive with the supply of finely regulated CO2. They reveal their full splendor with:

• vibrant colors,
• vigorous leaves, and
• healthy growth that unfolds right before your eyes.

This growth isn’t just a delight to the eye—it also creates the perfect habitat for your fish and microorganisms. Healthy plant life also means better water quality, as plants absorb nutrients and thus help purify the water. For your fish, this means a healthier and more natural environment.

Buy nutrient-rich food for freshwater fish

And then there’s the aesthetic aspect: An aquarium with a well-tuned CO2 system is a visual delight. The colors are more vibrant, the plants are more lush, and the entire aquarium exudes a natural beauty. It becomes a living work of art that’s not only calming and relaxing but also a conversation starter for guests and a source of pride for you as an aquarist.

All Data and Specifications at a Glance

ARKA’s innovative CO2 system is available in two sizes: 2.4 L and 3.7 L. To give you a comprehensive overview, we’ve carefully compiled all the essential technical data and specifications for both models in a clear and organized manner:

Table: Technical Data for the ARKA mcSCAPE-CO2 System

Note: Only the smaller version comes with a stand, as the larger system has a larger base and is therefore inherently stable.

The contents of the package are the same for both versions—only the amounts of baking soda and citric acid vary depending on the system:

• CO2 cylinder (stainless steel)
• Base (only for the 2.4 L version)
• Bubble counter with solenoid valve
• Pressure regulator with pressure gauge
• Filter with drying beads (reusable)
• Safety valve for pressure relief
• Needle valve for CO2 regulation
• CO2 hose (2 m)
• Diffuser
• Filling funnel
• Suction cup mount
• Check valve
• Citric acid: 2 x 200 g (for 2.4 L) / 3 x 200 g (for 3.7 L)
• Baking soda: 2 x 200 g (for 2.4 l) / 3 x 200 g (for 3.7 l)
• Various replacement parts

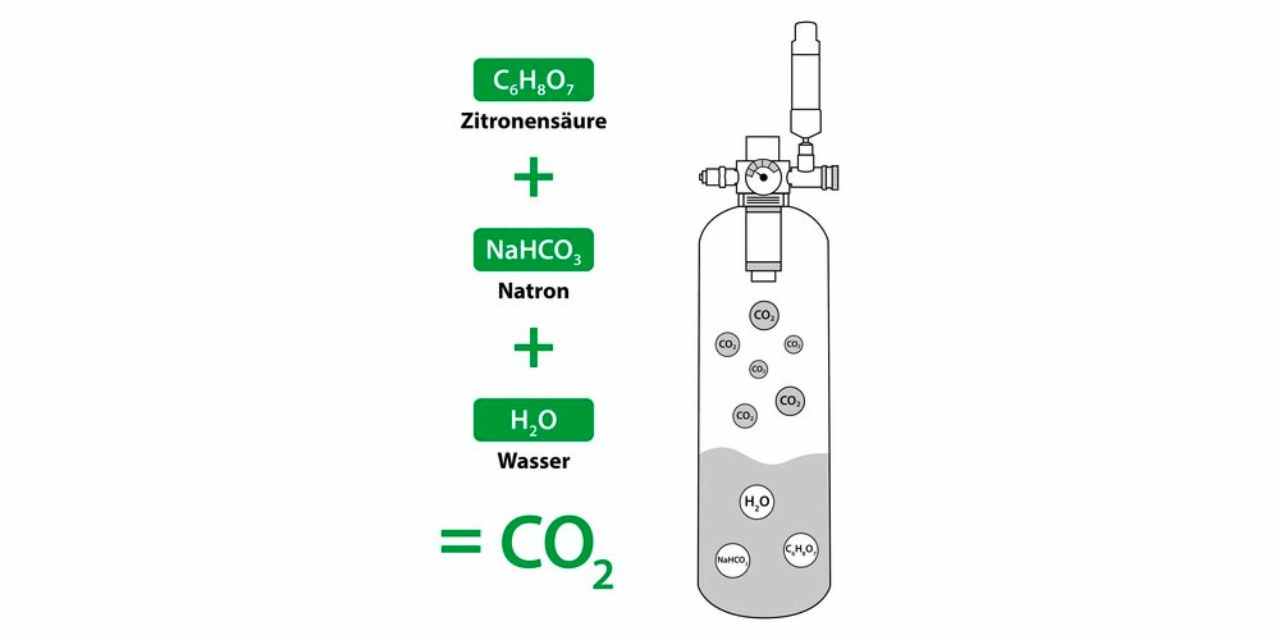

How the ARKA mySCAPE-CO2 System Works

At the heart of this system is a high-quality, pressure-resistant stainless steel cylinder that sets the stage for a small chemical miracle. But how does it work?

Let’s start with the basic components:

• Material A: Citric acid
• Material B: Sodium bicarbonate, also known as baking soda

Both substances are included in the starter kit. Preparation is incredibly simple: First, add the specified amount of baking soda and citric acid to the cylinder—depending on the volume of your system. For the 2.4-liter system, you’ll need 400 g of each substance, while the 3.7-liter system is filled with 600 g of each. Thanks to the included funnel, filling the cylinder is a breeze.

After you’ve added both components, it’s time to add the (cold) water—about 600 ml for the smaller system and 900 ml for the larger one. But please don’t just pour the water straight down into the cylinder! Instead, hold the bottle at a slight angle (about 45°) so the water can flow smoothly through the funnel and the mixture doesn’t splash out. Because as soon as the water comes into contact with the other two materials, the magic begins: a bubbling chemical reaction is triggered, and carbon dioxide is produced.

A few more important tips:

1. Add the water quickly, as the mixture reacts immediately. So screw the pressure regulator with the pressure gauge onto the opening as quickly as possible, and then place the cylinder in an upright position so that CO2 production isn’t impaired.
2. As the chemical reaction proceeds, the stainless steel housing will fog up. It’s best to place the cylinder on a towel or in a tub so that the condensation doesn’t damage the surface it’s resting on.
3. Don’t think that shaking the cylinder will speed up the chemical reaction or CO2 production. This happens all on its own; so just let the cylinder sit undisturbed and be patient—it’ll be worth it.

Step-by-Step Guide to Proper Installation and Use

Setting up and operating the ARKA mySCAPE-CO2 system is easier than you might think. Here’s a clear and simple step-by-step guide to easily setting up and using the system for your freshwater aquarium:

1. Step: Connect
   the pressure regulator to the filter. Remove the dust cap from the pressure regulator and screw the filter containing the drying beads into the designated opening. This filter prevents the solution from the cylinder from entering the regulator.
2. Step: Fill
   the cylinder with the ingredients Pour the baking soda and citric acid into the cylinder. Then add the specified amount of water. Once that’s done, carefully seal the cylinder with the pressure regulator. You can also find detailed instructions for this step in the previous chapter.
3. Step: Prepare
   the system for operation Due to the chemical reaction inside the cylinder, the internal pressure rises gradually. This can take about 3 to 6 hours. However, wait at least until the pressure in the system reaches 10 bar—that is, until it is within the green range on the pressure gauge. This minimum pressure is necessary so that the carbon dioxide produced can be “pushed” from the cylinder into the aquarium via the CO2 hose.
4. Step: Install
   the bubble counter The bubble counter helps you monitor the amount of CO2 released. Insert it into the quick-release coupling by pressing it in, and fill it three-quarters full with water—preferably reverse-osmosis water. (This can be easily produced, for example, using the ARKA myAQUA 1900.)
5. Step: Connect
   the CO2 hose to the systemUnscrew the cap from the bubble counter, thread the hose through the opening in the cap, and attach it to the top of the bubble counter. Now screw the cap back on to secure the hose in place.

   Tip from an aquarium pro

   The CO2 hose arrives rolled up, which can cause it to naturally kink. There’s a simple trick to straighten it: Submerge the hose in boiling water for a few minutes. Then use pliers to remove it and straighten it out with a towel. Hold it briefly in this straightened position. This will give you a smooth hose without any annoying kinks.

6. Step: Attach
   the check valve The check valve prevents water from flowing back into the system. You can connect the valve either directly to the diffuser or to the CO2 hose. To attach it to the hose, cut the hose at a suitable spot. A quick tip: Moisten the ends of the valve before slipping them onto the cut ends of the tubing. This ensures a secure connection. Also, pay attention to the valve’s flow direction—indicated by an arrow.
7. Step: Connect
   the CO2 hose and diffuserConnect the CO2 hose to the diffuser. Here, too, moistening the end of the diffuser makes it easier to securely attach the tubing. Then, ideally, place the diffuser deep in the water and close to the flow source to optimize the distribution of carbon dioxide in the water. The included suction cups hold the diffuser securely in place. (The diffuser included in the set is a bit small. If you prefer a larger one or want to keep your old one, that’s no problem at all. Just leave out the included diffuser and use the model of your choice instead.)

   Tip from an Aquarium Expert

   The diffuser’s ceramic plate should fit snugly and be thoroughly soaked. This ensures that uniform and finely distributed CO2 bubbles are produced when you start up your system.

   20% Discount



   Arka

   Arka myScape CO2 Diffuser - 35 cm

   23.95 € EIA 29.90 €
8. Step: Install
   the solenoid valve Connect the solenoid valve to a power source. It will open automatically—indicated by the illuminated indicator light—and begin supplying CO2. For automated control, you can optionally connect the valve to a timer.
9. Step: Adjust
   the CO2 Flow Use the needle valve to precisely regulate the amount of CO2 being supplied. Be careful not to add too much CO2 to maintain the ecological balance in your aquarium.

You can find a comprehensive tutorial on preparing and setting up the mySCAPE CO2 system in our video. Here, we’ll walk you through the process step by step and introduce the system in detail:

Noch nie war C02-Versorgung so sexy! | ARKA mySCAPE-CO2

This is a placeholder from Youtube.
Click here to play the video.
Please note that data may be passed on to third parties in the process.
More Information on Data Protection

Cleaning and Routine Maintenance: Tips and Tricks for a Long Service Life

To ensure that your aquatic plants always receive the ideal amount of CO2 and that your aquarium shines in all its glory, regular care and maintenance are essential. A few simple but important steps will help you keep your system in top condition and thus ensure the well-being of your underwater world.

Infographic: Cleaning & Maintenance Routine for the MySCAPE-CO2 System
Inspection → Maintenance → Cleaning → Replacing Parts

Component Maintenance: For Long-Term Performance

Remember: A well-maintained CO2 system not only guarantees an efficient CO2 supply but also supports the health and growth of your aquarium plants. With just a little time and care, your aquarium will remain a magnificent focal point.
For routine maintenance, you really just need to follow these steps:

1. Check the drying beads for swelling or signs of wear. It’s best to wash the old beads with reverse osmosis water and let them dry completely. In the meantime, you can use the replacement beads provided.
2. If necessary, use the hex key to loosen the quick-connect fitting on the bubble counter to clean the seal. Make sure it’s free of dirt and debris.
3. Check the O-ring on the needle valve and the pressure regulator. If it is worn, replace it.


Cleaning the Solenoid Valve: How to Keep Your CO2 System in Top Condition

Cleaning the individual parts is not difficult at all. Just follow the instructions below, and your mySCAPE CO2 system will run like a charm:

1. Basic Inspection: Start by carefully inspecting all parts. Look for dirt, deposits, or signs of wear.
2. Cleaning the solenoid valve: If the valve doesn’t close or open properly, it may be affected by moisture or dirt. Disconnect it from the power source, unscrew it, and carefully remove the internal components (the insert and the spring).
3. Clean the insert and spring: These small but essential parts should be handled with special care. Use isopropyl alcohol or another mild cleaning alcohol to gently clean the insert and spring. Be careful not to lose them, and make a note of their correct installation orientation.
4. Let them dry completely: Make sure all parts are completely dry after cleaning before reassembling them. Residual moisture can cause corrosion or other problems!
5. Establish a regular maintenance routine: Set specific times for maintaining and cleaning your system. Regular maintenance prevents unexpected malfunctions and ensures consistently optimal performance.

Replacing the fluid: When and how?

If the pressure gauge drops to zero, it’s time to refill the system. To be absolutely sure, remove the bubble counter and open the needle valve. If you hear little or no hissing, the cylinder is definitely empty and free of CO2.

Graphic: When to change the material in the mySCAPE-CO2 system

Here’s how to safely replace the materials:

1. Check the pressure regulator and filter: Unscrew the pressure regulator and inspect both the threads and the gasket for moisture or dirt. The same applies to the filter: Remove it from the pressure regulator, unscrew it, and check the desiccant beads inside. If they’re sticky or dirty, rinse them out and let them dry. In the meantime, you can use the replacement beads.
2. Clean the cylinder: It’s best to do this in the bathroom to avoid making a mess. Pour out the old water and rinse the cylinder a few times with tap water. Then shake it well and let it dry upside down. This is important to get rid of all water residue. As we know, we’ll need precise measurements later when refilling. Too much water in the cylinder would interfere with CO2 production.
3. Refilling the cylinder: Once you’ve wiped the outside of the cylinder dry, it’s ready to be refilled.

14% Discount

Arka

Arka MyScape CO2 Refiller - 400 g

5.95 €

(14.88 € / kg)

EIA 6.90 €

20% Discount

Arka

Arka MyScape CO2 Refiller - 600 g

7.95 €

(13.25 € / kg)

EIA 9.90 €

Perfect CO2 control for your aquarium: The mySCAPE CO2 Checker

Too much or too little carbon dioxide? That is the question. With the mySCAPE CO2 Checker, you can shed light on the matter and ensure the perfect carbon dioxide level in your aquarium. Your plants will thank you with lush growth! Although the long-term test kit is not included in the mySCAPE CO2 system, it can easily be purchased separately in our Petonus online store.

20% Discount

Arka

Arka myScape CO2 Checker

11.95 € EIA 14.90 €

It’s incredibly easy to use: Simply attach the CO2 Checker to the inside of the aquarium glass, with the opening facing down. Fill it with the continuous test solution so that the color is clearly visible. The standard concentration of 20 mg/l is ideal for most aquarium plants.

17% Discount

Aqua Rebell

Aqua Rebell CO2 Check - up to 30 mg/L

13.95 €

(55.80 € / l)

EIA 16.90 €

17% Discount

Aqua Rebell

Aqua Rebell CO2 Check - up to 20 mg/L

13.95 €

(55.80 € / l)

EIA 16.90 €

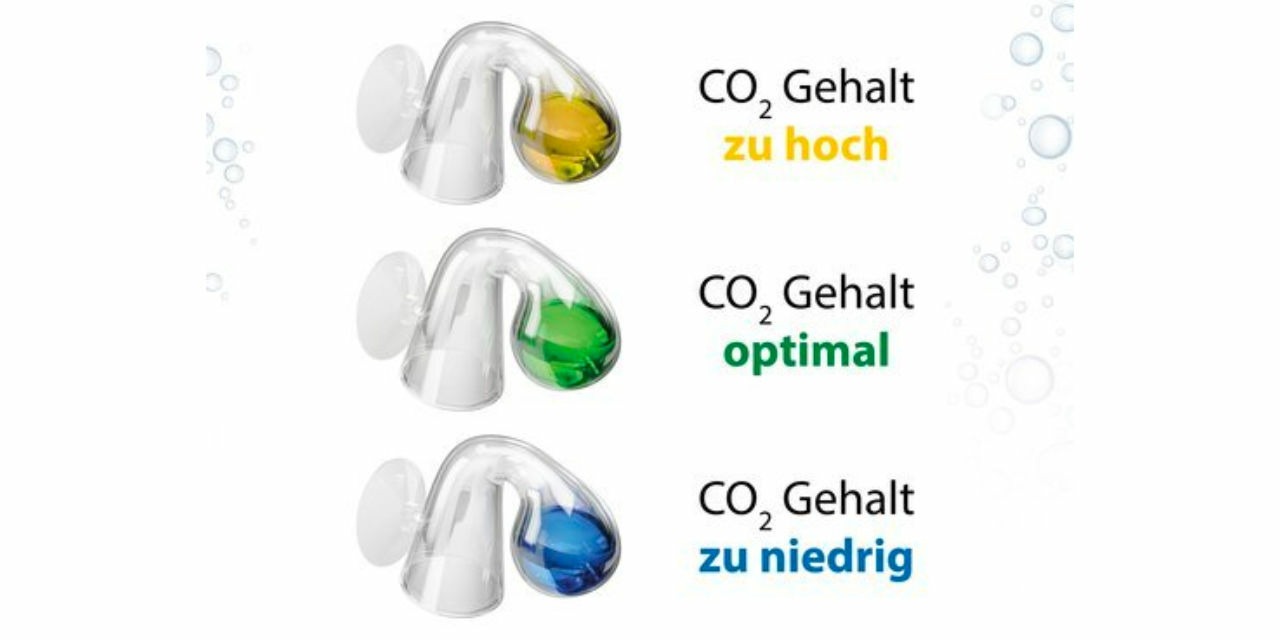

The mySCAPE-CO2 Checker comes with a special test solution containing bromothymol blue. This dye is a true miracle worker in carbon dioxide measurement, as it changes color depending on the CO2 concentration in the water. The color change is based on shifts in the pH level caused by dissolved carbon dioxide. This allows you to see at a glance whether the carbon dioxide level is optimal for your plants.

Buy the ARKA mySCAPE-CO2 System online at Petonus

The secret to a successful aquarium lies in the proper supply of CO2. The ARKA mySCAPE-CO2 System allows you to monitor this precisely and ensure that your plants always receive the necessary amount of carbon dioxide. This not only promotes growth but also improves the health and vitality of your underwater flora. You can easily order the ARKA mySCAPE-CO2 System from our online store. Just a few clicks and you’ll be one big step closer to your dream aquarium.
Do you have questions about the ARKA mySCAPE-CO2 System or need professional advice? Our team of experts at Petonus is happy to assist you. Just give us a call at 03641 376432 or send us your inquiry via our contact form. We look forward to hearing from you!
